APOLLO LASER SYSTEMS FOR PATIENT ALIGNMENT IN RT

製造販売企業：メディカル・エキスパート株式会社

製品について

【PERFECT INTEGRATION】
The characteristic features of LAP laser systems are sophisticated technology, quality and design for more than 30 years. This level of excellence has made us the global market leader for patient alignment in radiotherapy.

In radiotherapy precise, reproducible and fast positioning of patients are required for successful treatments and high patient throughput.

After the initial patient marking process at CT or MRI the patient will be repositioned on the LINAC using cross hair and sagittal line lasers. The fixed lasers are aligned to the isocenter of the LINAC and enable isocentric positioning of the patient.

Integrated in a superior aluminium housing our APOLLO room laser combines advanced optics, high precision mechanics and state of the art electronics to ensure the highest level of stability and reliability.

Offering various configurations the APOLLO lasers are perfectly suited to meet all room requirements.

製品詳細

arrow_drop_down 機能説明

arrow_drop_down 仕様

機能説明

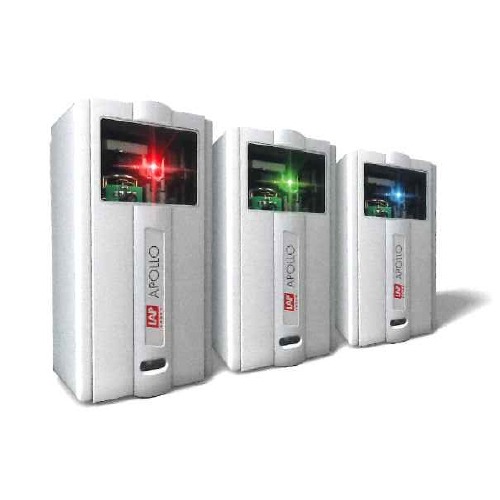

: CHOOSE YOUR LASER COLOR All APOLLO room lasers come equipped with long-life laser diodes. Depending on your personal preferences, ambient room light or room design you can choose your laser color.

: PRECISE LAP ULTRALINE is the result of advanced mechanical components and unique optoelectronics used to generate and align laser lines for medical applications.
The ultra-fine and long lines meet the highest quality requirements for linearity and brightness distribution.

: DISTORTION-FREE LAP APOLLO lasers are fitted with unbreakable, specially flattened glass windows. This minimizes scattering and guarantees ultra-fine lines at all transition angles.

: EASE OF ADJUSTMENT APOLLO lasers are initially adjusted to the isocenter of the LINAC during installation.
For adjustments over time the easy to use remote control offers 6 degrees of freedom. The remote control performs all laser positioning for the ultrafine lines including focus.

: MOUNTING VERSIONS For patient alignment each LINAC room is equipped with at least three room lasers. One laser projects a sagittal line and two cross hair lasers project the transverse and horizontal lines. You are free to select from four mounting versions to perfectly match your existing room situation.

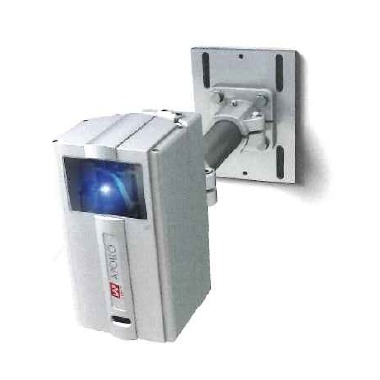

: BRACKET FOR FALSE CEILINGS Custom mounting brackets are available for large distances between the mounting plates and the false ceiling or wall recess.

: TILT BRACKET LAP APOLLO lasers are equipped with adjustable tilting brackets allowing for rotation up to 45°. The APOLLO's compact design makes it an ideal solution for tight mounting locations.

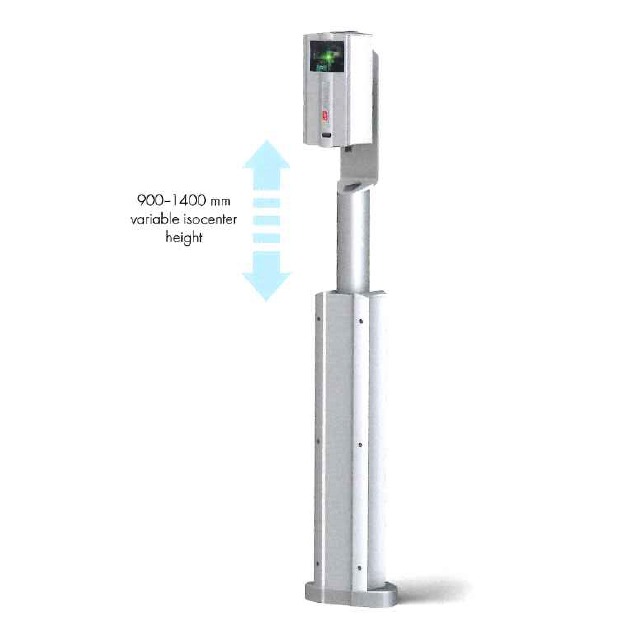

: FREE STANDING COLUMN For locations where wall mounts are not possible the LAP APOLLO laser can be equipped with an optional free standing column.

arrow_drop_up製品詳細メニューへ戻る

仕様

Laser color(wave length): red(638mm), green(520mm), blue(450mm)

Line width up to 4 m distance: 0.5mm

Line length at 3 m distance: >3m

一般仕様

重量: 2.6kg

寸法: 幅110mm×奥行100mm×高さ221mm

電源: 【電圧】AC100～240V(内部電圧DC24V)

使用環境: 【温度】5～30℃(動作時)

その他規格: 【レーザクラス】2

arrow_drop_up製品詳細メニューへ戻る
